Product Details:
|
|
| Brand Name: | Allen Bradley |
|---|---|

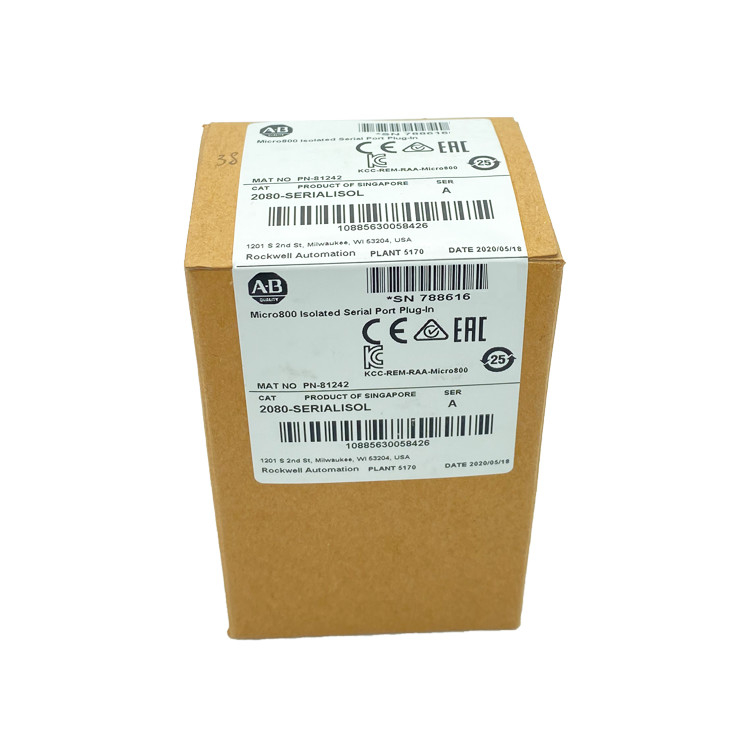

| Model Number: | 2080-SERIALISOL |
|
Payment & Shipping Terms:
|
|
| Payment Terms: | T/T, D/A, D/P, Western Union |
| Supply Ability: | 100 Piece/Pieces per Month |
Product Description
The 2080-SERIALISOL plug-in supports CIP Serial (RS-232 only), ModbusRTU (RS232 and RS485), and ASCII (RS232 and RS485(1)) protocols. Unlike the embedded Micro800 serial port, this port is electrically isolated, making it ideal for connecting to noisy devices, such as variable frequency and servo drives, as well as for communications over long cable lengths. Depending on the application and baud rate setting, you can extend this length.
2080-SERIALISOL is suitable for communication over longer cable length of up to 1000 m using RS485, with up to 19200 bps baud rate. The electrical characteristics of cable used and good wiring practices are very critical in achieving reliable communication performance over longer cable length. A shielded twisted pair RS485 22AWG cable (example: 3106A from Belden) is recommended. Terminate both ends of the cable with 120 ohm resistance.
| Attribute | Value |
| Mounting torque | 0.2 Nm (1.48 lb-in) |
| Terminal screw torque | 0.22…0.25 Nm (1.95…2.21 lb-in) (using a 2.5 mm (0.10 in.) flat-blade screwdriver) |
| Isolated voltage | 500VAC |
| Temperature, operating |
IEC60068-2-1 (Test Ad, Operating Cold), IEC60068-2-2, (Test Bd, Operating Dry Heat), IEC 60068-2-14 (Test Nb, Operating Thermal Shock): -20...65 °C (-4…149 °F) |
| Temperature, surrounding air, max. | 65 °C (149 °F) |
| Temperature, non-operating |
IEC60068-2-1 (Test Ad, Operating Cold), IEC60068-2-2, (Test Bd, Operating Dry Heat), IEC 60068-2-14 (Test Nb, Operating Thermal Shock): -40...85 °C (-40…185 °F) |
| Vibration | IEC 60068-2-6 (Test Fc, Operating): 2g @ 10...500 Hz |
| Shock, operating |
IEC 60068-2-27 (Test Ea, Unpackaged Shock): 25 g |
